Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Image Grand : Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Super-curing
Certification:	CE/RoHS
Numéro de modèle:	CG-L30010-C

Conditions de paiement et expédition:

Quantité de commande min:	2
Détails d'emballage:	Emballage en carton
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	T/T, L/C

Contact

Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

description de

Mettre en évidence:

Air-Cooled UV LED curing lamp 395nm

High-Intensity UV lamp for inkjet printing

LED UV curing system for cable marking

365nm Air-Cooled UV LED Linear Light Source 320W High Intensity Curing System

Model: CG-L30010-C
High-Performance UV LED Line Light Source for Printing, Coating, Adhesive Bonding & Industrial Manufacturing

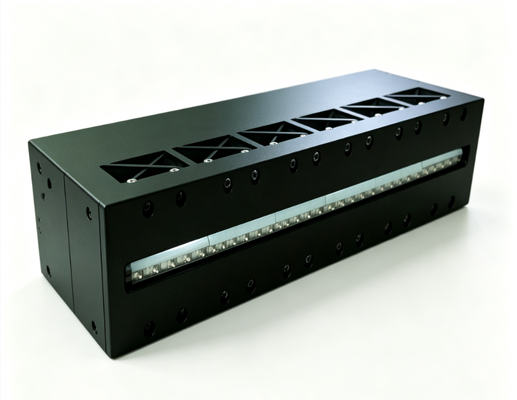

The CG-L30010-C Air-Cooled UV LED Linear Light Source is designed for high-speed industrial UV curing applications. Utilizing advanced UV LED technology and high-density LED chip arrays, it delivers exceptional irradiance, excellent curing uniformity, low heat generation, and long service life.

Compared with traditional mercury lamps, the CG-L30010-C offers instant ON/OFF operation, energy savings of up to 70%, no mercury pollution, no ozone generation, and minimal maintenance requirements, making it an ideal solution for modern industrial production lines.

Product Images

Technical Specifications

Parameter	Specification	Parameter	Specification
Model	CG-L30010-C	Product Type	UV LED Linear Curing System
Cooling Method	Air Cooling	Housing Material	Aluminum Alloy
Dimensions (LWH)	318 * 55 * 120 mm	Emitting Area	300 * 10 mm
Peak Irradiance	2400mW/cm²	Irradiance Uniformity	>85%
Standard Wavelength	365nm	Optional Wavelengths	385nm / 395nm / 405nm
Power Consumption	320W	Operating Noise	≤75dB
Lifespan	>20,000 Hours	Installation Type	Production Line Integration
Control Interface	Dry Contact / 0-24V Analog	Control Signal	Pulse Signal / Level Signal
Alarm Output	Dry Contact Signal	Optional Monitoring	LED Status / Irradiance Monitoring
Working Mode	Continuous / Intermittent	Customization	Available

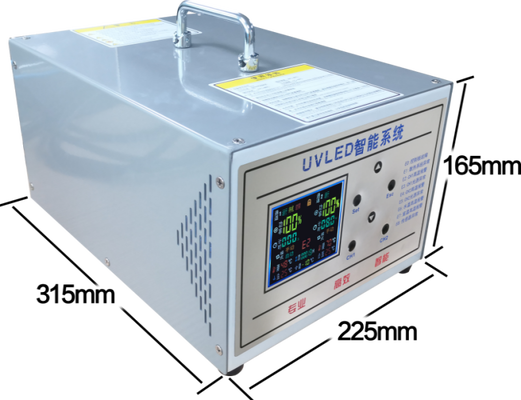

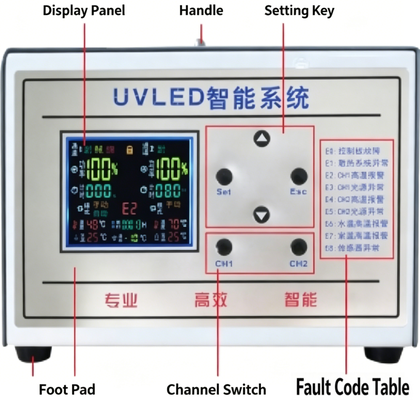

Intelligent Controller Specifications

Parameter	Specification	Parameter	Specification
Model	CG-L30010-C Controller	Controller Type	Intelligent UV LED Controller
Dimensions	315 * 225 * 165 mm	Weight	6kg
Power Supply	AC220V 15A	Cooling Method	Air Cooling
UVLED Channels	2 Channels	Maximum Drive Power	2400W

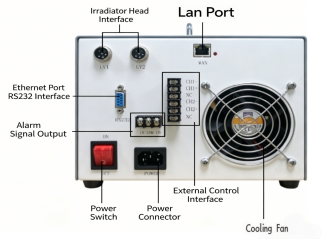

Communication Interface	RS232 / Ethernet	I/O Control	Supported
External Control	Dry Contact / Analog Signal	Touch Panel	Integrated LCD Screen

Key Features & Advantages

UV Lamp + Controller Integrated Solution
High Irradiance up to 2400mW/cm²
PLC and Automation Compatible
RS232 & Ethernet Communication
Independent Multi-Channel Control
Stable Air-Cooled Design
20,000+ Hour Lifespan
Mercury-Free & Environmentally Friendly
OEM & ODM Customization Available

Frequently Asked Questions

What UV wavelengths are available?

The standard wavelength is 365nm, with optional wavelengths of 385nm, 395nm, and 405nm available to match different UV materials and curing requirements.

What is the maximum UV intensity?

The CG-L30010-C provides a maximum irradiance of 2400mW/cm², enabling fast and efficient curing for industrial applications.

Can the UV output be adjusted?

Yes. The intelligent controller allows users to adjust the UV output according to different curing processes and production requirements.

Is wavelength customization available?

Yes. We can provide customized wavelengths, curing areas, and system configurations based on customer requirements.

What materials can this system cure?

It is suitable for curing:

UV inks
UV adhesives
UV coatings
UV varnishes
UV resins
Photosensitive materials
