Environment Friendly UV Curing Equipment Ozone Free UV Curing System

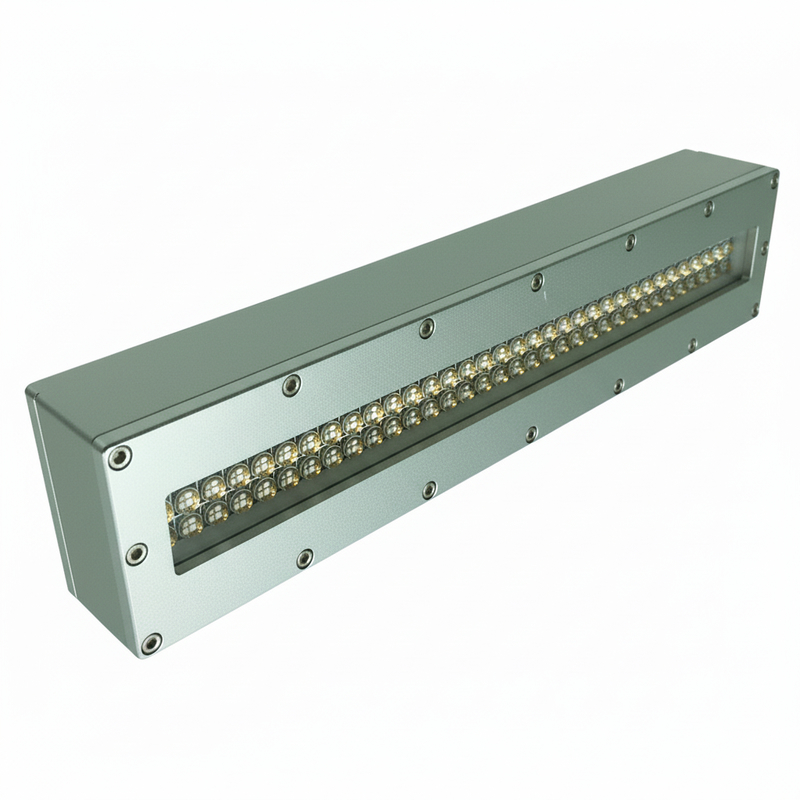

Image Grand : Environment Friendly UV Curing Equipment Ozone Free UV Curing System

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	CG
Certification:	CE*RoHS
Numéro de modèle:	CG-CT3-16027-600A

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	2500-3000usd 1 set
Détails d'emballage:	Casse en bois
Délai de livraison:	10-15 jours ouvrables
Conditions de paiement:	L / C, T / T
Capacité d'approvisionnement:	10 set / jour

Contact

Environment Friendly UV Curing Equipment Ozone Free UV Curing System

description de

mot-clé:	Équipement de durcissement à LED UV	Pouvoir:	600W
Tension d'entrée:	AC85-265V	Longueur de vague:	395 nm 385 nm
Refroidissement:	Refroidissement de l'eau	Intensité UV:	18W/CM2
Garantie:	2 ans	Emballer:	Casse en bois
Mettre en évidence:	ozone free UV curing system , environment friendly UV curing equipment , UV LED curing equipment with warranty

Environment Friendly Uv Led Curing Lamp With Ozone Free UV Curing System

UV LED Curing Equipment Description

A UV-LED curing lamp is a high-performance light source specifically designed for UV curing applications. It emits high-intensity ultraviolet light, ensuring that UV-sensitive materials (including resins, inks, varnishes, adhesives, and coatings) are fully dried and perfectly cured in a very short time. This technology provides a fast, reliable, and stable curing solution for users across various industries, such as printing, electronics, medical, and woodworking.

UV LED Curing Equipment Datasheet

Model	CG-CT3-26027-600A	lamp color	Rose golden
Power	600W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV LED Curing Equipment Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 20000hours .

Environment Friendly UV Curing Equipment Ozone Free UV Curing System 0

Environment Friendly UV Curing Equipment Ozone Free UV Curing System 1

UV LED Curing Equipment FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas

Notation globale

5.0

Basé sur 50 avis pour ce fournisseur

Capture d'écran de notation

Voici la répartition de toutes les notes

5 étoiles

100%

4 étoiles

3 étoiles

2 étoiles

1 étoiles

Toutes les critiques

Leonardo

Italy Nov 19.2025

Il est utile. (37)

The UV lamps integrate seamlessly with our factory's PLC system. Signal feedback is sensitive, and both switching and power adjustment can be precisely controlled via a host computer, resulting in a high degree of automation integration.

Emma

United States Sep 12.2025

Il est utile. (106)

The aluminum alloy casing is really robust; it survived a drop without breaking, the quality is truly top-notch.

Dubois

France Oct 19.2024

Il est utile. (48)

Spectrometer testing showed that the 365nm wavelength was extremely pure with stable peak values. I used it for curing industrial-grade UV adhesives, and the reaction speed was nearly doubled compared to the older model, significantly shortening the production line cycle.
