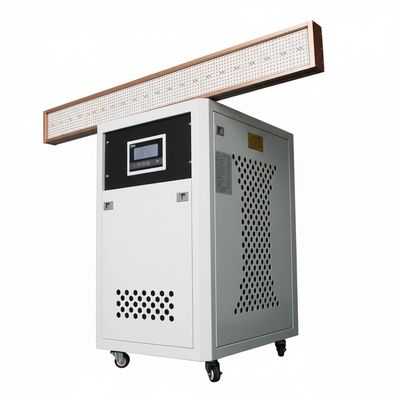

High-Speed Drying UV LED Curing Equipment for Quick Curing of UV Ink

Image Grand : High-Speed Drying UV LED Curing Equipment for Quick Curing of UV Ink

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	CG
Certification:	CE*RoHS
Numéro de modèle:	CG-CT10-40027-3000A

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	2500-3000usd 1 set
Détails d'emballage:	Casse en bois
Délai de livraison:	10-15 jours ouvrables
Conditions de paiement:	L / C, T / T
Capacité d'approvisionnement:	10 set / jour

Contact

High-Speed Drying UV LED Curing Equipment for Quick Curing of UV Ink

description de

mot-clé:	Équipement de durcissement à LED UV	Pouvoir:	3000W
Tension d'entrée:	AC85-265V	Longueur de vague:	395nm
Refroidissement:	Refroidissement de l'eau	Intensité UV:	18W/CM2
Garantie:	2 ans	Emballer:	Casse en bois
Mettre en évidence:	UV LED curing equipment for UV ink , high-speed UV ink drying machine , quick curing UV LED equipment

UV LED Curing Equipment for Quick Curing of UV Ink

UV LED Curing Equipment Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

UV LED Curing Equipment Datasheet

Model	CG-CT10-40027-1500A	lamp color	Rose golden
Power	3000W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV LED Curing Equipment Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Durable with a 20,000-hour operational life.

High-Speed Drying UV LED Curing Equipment for Quick Curing of UV Ink 0

High-Speed Drying UV LED Curing Equipment for Quick Curing of UV Ink 1

UV LED Curing Equipment FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
